CQCS3 Software 3nh NR110 Portable Colorimeter For Metal Painting

Brand Name : 3nh

Model Number : NR110

Certification : CE, TUV, FCC, ISO9001, RohS

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Discuss

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 Units per Month

Delivery Time : 1-3 work days

Packaging Details : 46*25*38cm, 4.5kg, Alluminum Box

Measuring Aperture : Φ4mm

Repeatability : within ΔE*ab 0.08

Illuminating/Viewing Geometry : 8° / d

Measuring Range : L: 0 to 100

Illuminant Device : LED blue light excitation

Storage : 100 pcs standard samples; 20000 pcs test samples

Color Difference Formula : ΔE*ab; ΔL*ab; ΔE*C*H

Measuring Conditions : CIE 10° Standard Observer

Contact Now

Product Description

NR110 portable colorimeter for metal painting

Features:

1. PC software: CQCS3 software

2. Pass CE, ISO 9001, ROHS, TUV certifications

3. 8mm measurement aperture

4. Rechargeable Li-ion battery

5. USB interface

6. Optional mini printer

7. D65 light source

8. 8/d illuminating geometry

9. 0.08 high presicion

10. Instrument Box

NR110 colorimeter Specifications:

Illuminating/Viewing Geometry:	8/d
Measuring Aperture:	Φ4mm
Detector:	Silicon photoelectric diode
Color Space:	CIELabCh* CIELab*
Color Difference Formula:	delta Eab delta Lab delta EC*h
Light Source:	D65
Light Source Device:	LED blue light excitation
Errors Between Each Equipment:	≤0.80deltaE*ab
Storage:	100pcs standards 20000pcs samples
Repeatability:	Standard deviation within deltaE*ab 0.08
Weight:	500g

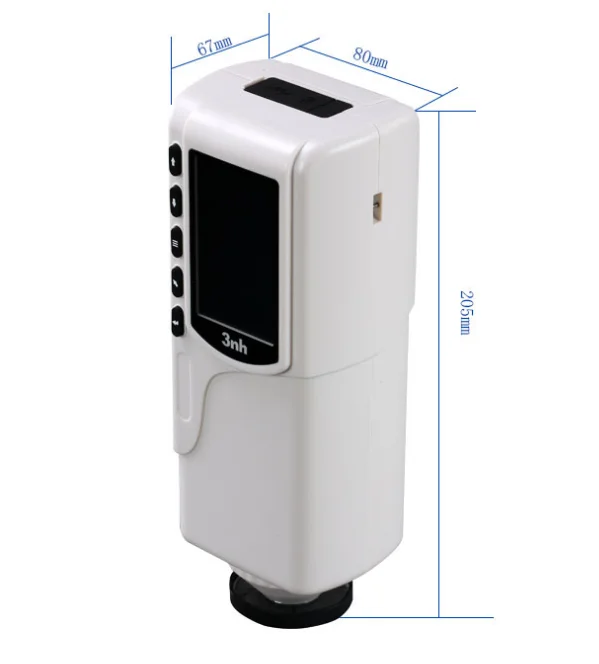

Dimension:	205×67×80 mm
Power source:	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life:	3 years, more than 1 million measurements
Language:	English/Chinese

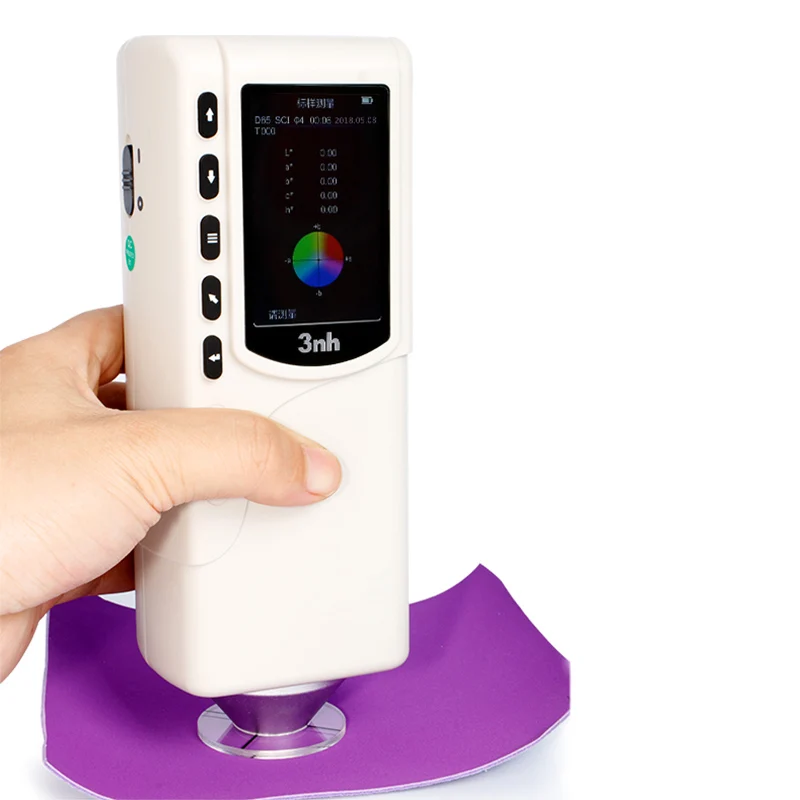

Product Images

CQCS3 Software 3nh NR110 Portable Colorimeter For Metal Painting

Certifications

3nh passed ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES.

CQCS3 Software 3nh NR110 Portable Colorimeter For Metal Painting

3nh NR110 Portable Colorimeter

CQCS3 Software Portable Colorimeter

Metal Painting 3nh Chroma Meter

CQCS3 Software 3nh NR110 Portable Colorimeter For Metal Painting Images
